SOLTEC® is a leading manufacturer and supplier of pipe macerators and shredders for utilities, wastewater treatment plants and industrial facilities.

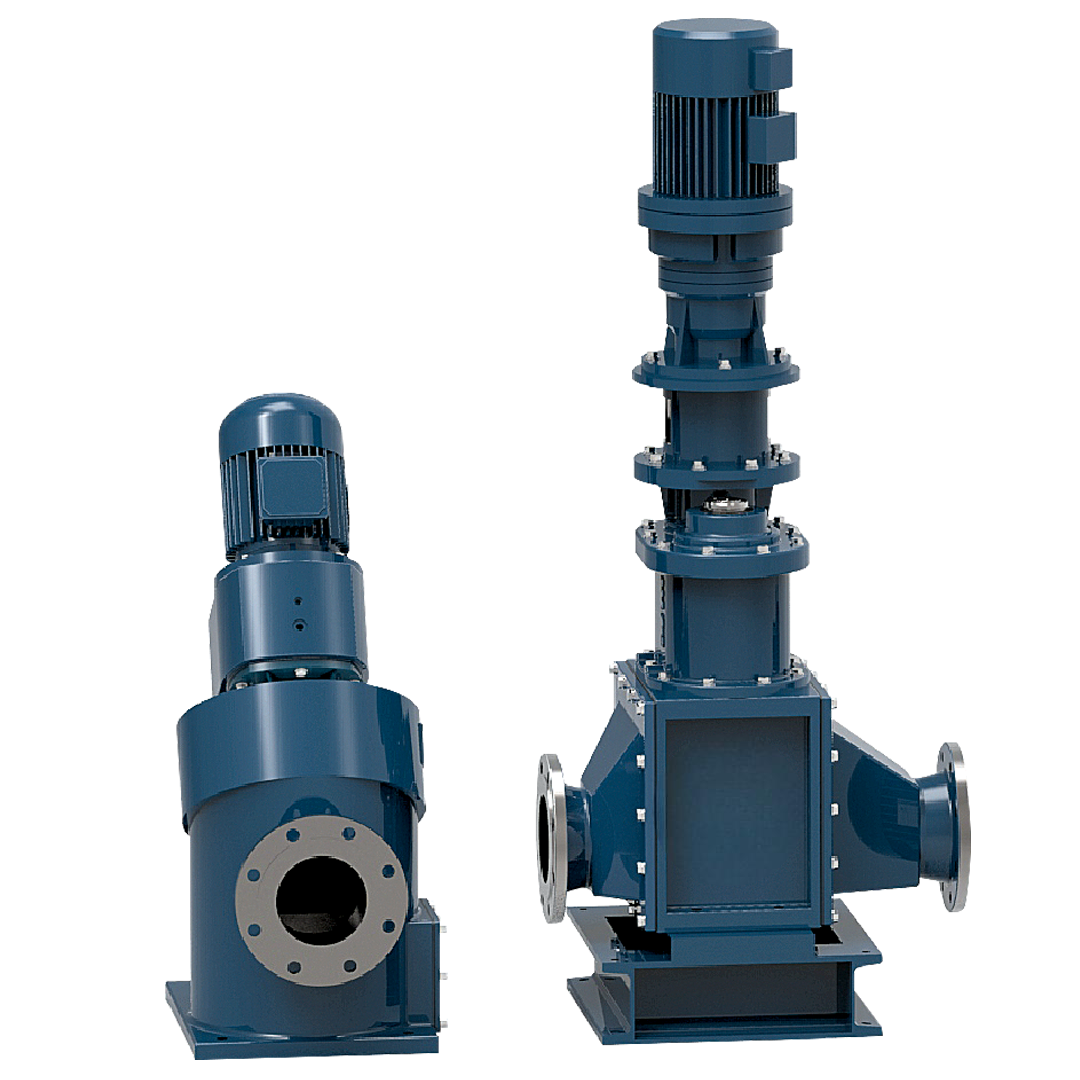

SOLTEC® industrial macerators and shredders

SINGLE-SHAFT TUBE
MACERATOR SQ

CAPACITY up 25 to 200 m3/h
POWER up 2.2 to 4 кWt

TWIN-SHAFT TUBE
SQA MACERATOR

CAPACITY up 100 to 250 m3/h
POWER up 2.2 to 4 кWt

HOPPER TWIN-SHAFT
MACERATOR SQS

CAPACITY up 100 to 250 m3/h
POWER up 2.2 to 4 кWt

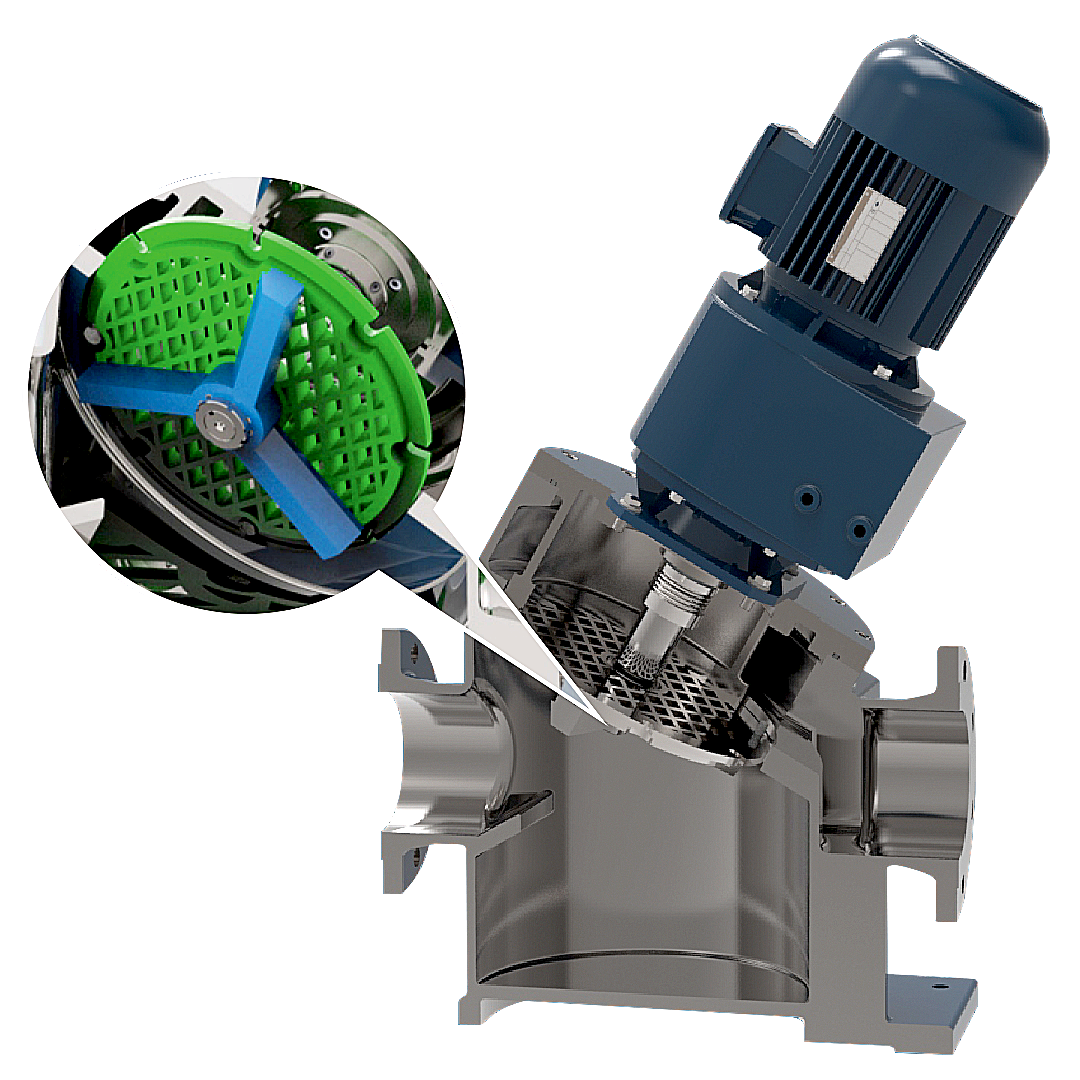

SOLTEC® SQA pipe single-shaft MACERATOR

In this type of macerators, the movable blade is mounted on a transmission shaft to which torque is transmitted from a gearmotor, and the cutting grid is fixed in the body of the macerator.

The cutting pair has a technological gap and is located at an angle to the body, which ensures unobstructed discharge of hard-to-grind inclusions into the accumulation chamber in the lower part of the macerator.

I have a question


Specifications	Capacity on water	Suction	Rotation speed	Power	Inlet	Outlet
Model	m3/h	MPa	rpm	kWt	DN/PN	DN/PN
SQ 025-2.2	25	0.6	290	2.2	150/1.6	150/1.6
SQ 080-3	80	0.6	290	3	150/1.6	150/1.6
SQ 200-4	200	0.6	320	4	200/1.6	200/1.6

SOLTEC® SQ series macerators efficiently grind various fibers, soft and hard inclusions, inhomogeneous impurities, etc.

The SQ series macerators prepare the media for pumping with different types of pumps.

For trouble-free operation of SOLTEC® macerators, inclusions such as metals and stones must be excluded to prevent damage to the cutting pair.

The SQ series macerators are ideal for wastewater treatment process lines in industrial and municipal facilities.

SOLTEC® SQ series macerators are equipped with a collector for easy sludge removal.

The cutting pair is easily replaced and serviced through the upper drive mounting flange.


SQ Series	L	H	h	A	A1	B	B1	d2	L1	Flange	d	D	Q	d1	n	P
Model	mm	mm	mm	mm	mm	mm	mm	mm	mm	type	mm	мmm	mm	mm	pc	mm
SQ 025-2.2	620	990	250	530	460	380	310	Ф19	110	DN150/PN1.6MPa	Ф150	Ф285	Ф240	Ф22	8	24
SQ 080-3	620	990	250	530	460	380	310	Ф19	110	DN150/PN1.6MPa	Ф150	Ф285	Ф240	Ф22	8	24
SQ 200-4	660	1100	250	550	480	420	350	Ф19	110	DN200/PN1.6MPa	Ф200	Ф340	Ф295	Ф22	12	24

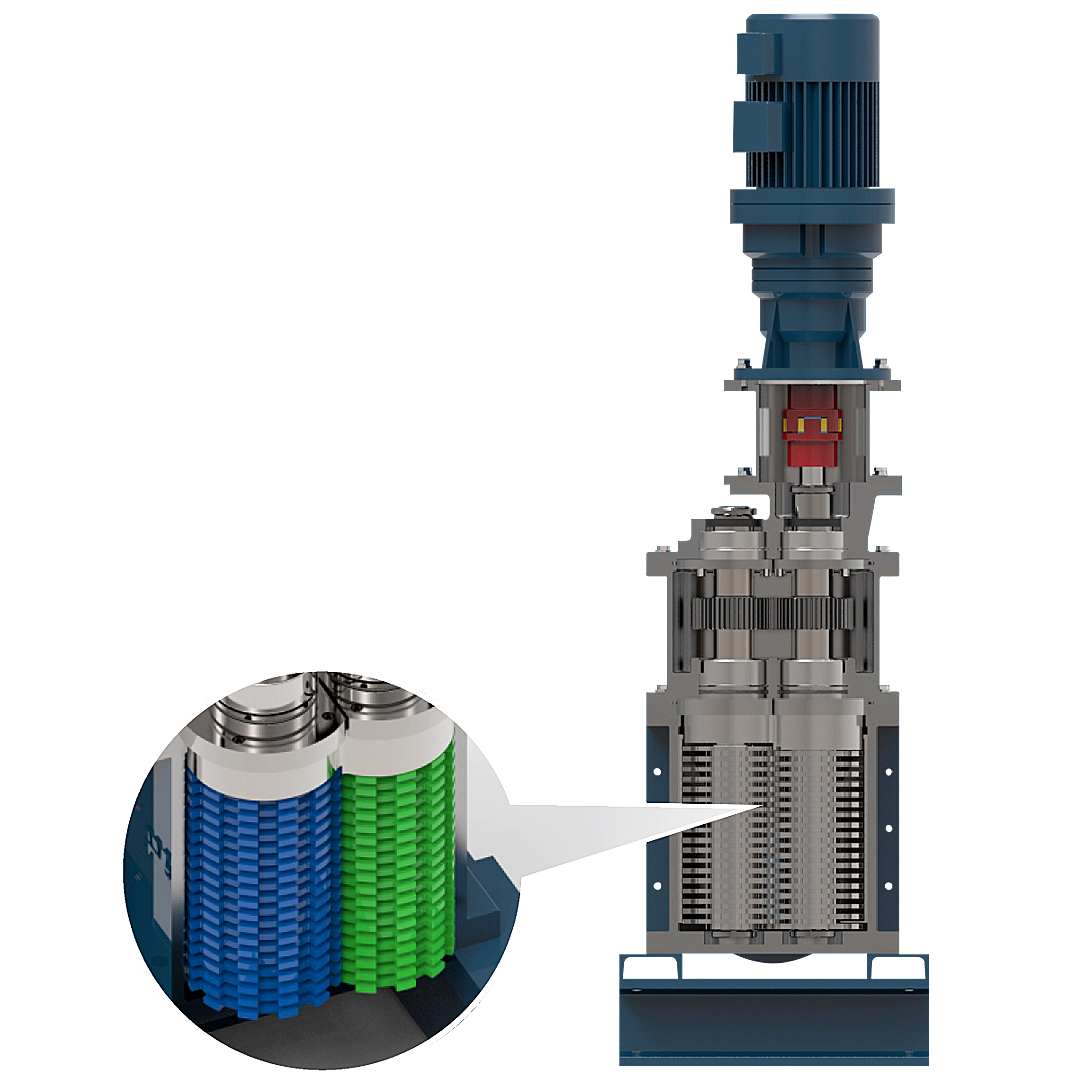

SOLTEC ® SQA pipe twin shaft MACERATOR

SOLTEC® SQA series macerator shafts are equipped with cutting cutters with technological clearance. The gearmotor transmits torque to the macerator drive shaft, which is connected to the driven shaft by gears. The mass to be shredded passes between the cutting knives on the shafts. The cutters cut the fibers and shred the inclusions.

This type of macerators is characterized by high capacity (up to 250 m3/h) at low shaft speed (up to 100 rpm) and power (up to 4 kW).

The SOLTEC® SQA series macerator cutting roll system has an increased ability to shred organics, plastic and rubber inclusions, textiles and other dry impurities.

The cutting knives on the shafts of the SQA series macerator are hard chrome plated for hardness and durability.

This type of macerator allows fully automated operation: speed control of the cutting plates, overload and locking control, automatic reversing.

I have a question


Specifications	Capacity on water	Suction	Rotation speed	Power	Inlet	Outlet
Model	m3/h	MPa	rpm	kWt	DN/PN	DN/PN
SQA 100-2.2	100	0.6	50-80	2.2	150/1.6	150/1.6
SQA 160-3	160	0.6	50-80	3	150/1.6	150/1.6
SQA 250-4	250	0.6	50-80	4	200/1.6	200/1.6

The cutting plates can be removed and serviced through the upper drive mounting flange.

The vertical arrangement of the shafts with cutting plates facilitates the shredding of solid inclusions.

In the lower part of the macerator housing there is an inspection window through which the sludge is removed.

The SQA series macerators can be installed horizontally or at an angle.


SQ Series	L	H	h	A	A1	B	B1	d2	L1	Flange	d	D	Q	d1	n	P
Model	mm	mm	mm	mm	mm	mm	mm	mm	mm	type	mm	mm	mm	mm	pc	mm
SQA 100-2.2	550	1400	200	380	330	430	380	Ф18	150	DN150/PN1.6MPa	Ф150	Ф285	Ф240	Ф22	8	24
SQA 160-3	550	1450	200	380	330	430	380	Ф18	150	DN150/PN1.6MPa	Ф150	Ф285	Ф240	Ф22	8	24
SQA 250-4	550	1500	200	380	330	430	380	Ф18	150	DN200/PN1.6MPa	Ф200	Ф340	Ф295	Ф22	12	24

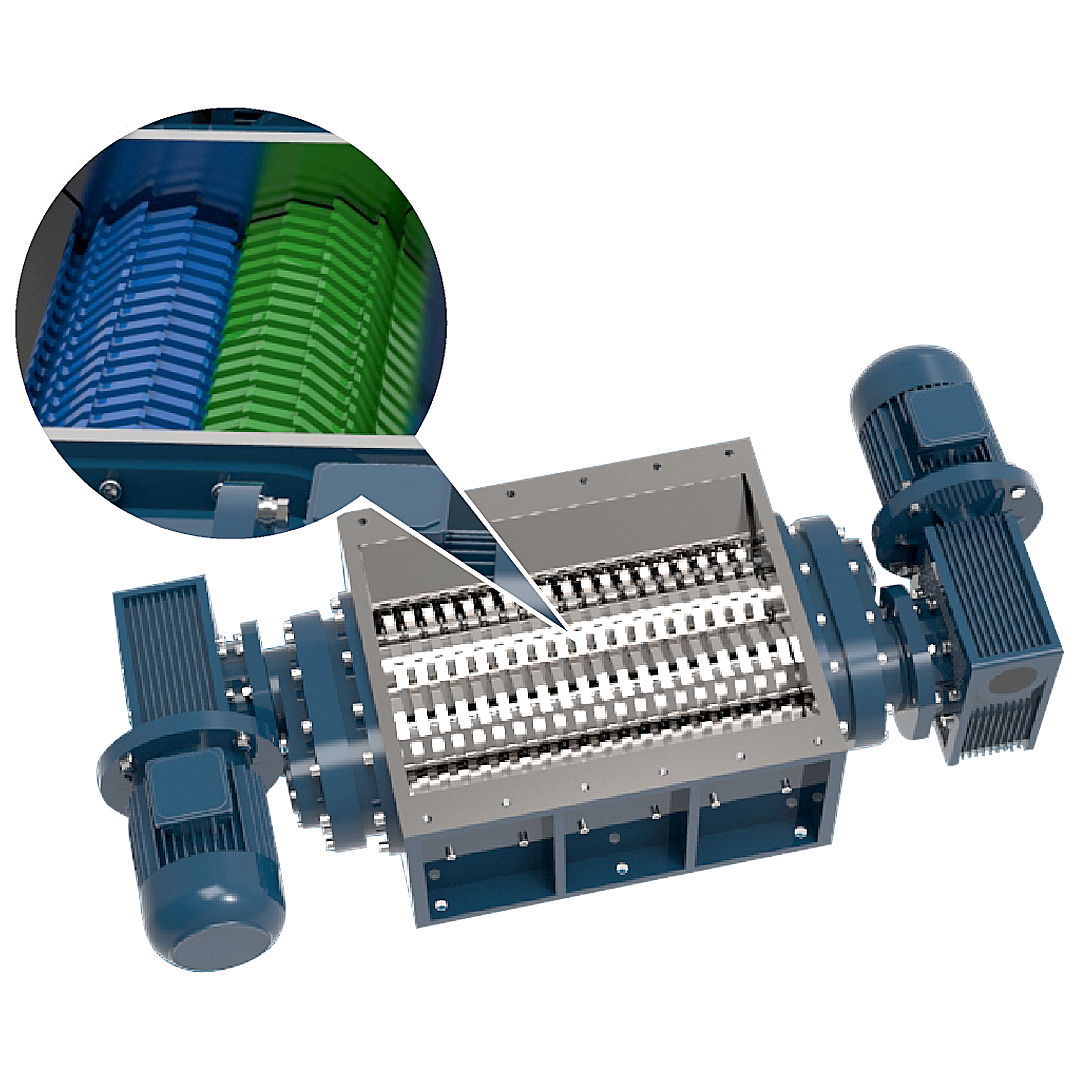

SOLTEC SQS hopper twin-shaft MACERATOR

SOLTEC® SQS series shredders are equipped with specially shaped cutting plates with technological gaps on two shafts. Each shaft with cutting plates has its own independent drive. The rotational speed can therefore be set independently for each shaft. The direction of rotation of the shafts can also be set independently.

The SQS series macerators are characterized by high capacity (up to 300 m3/h), efficient handling of particularly heavy media and increased cutting capacity.

Special mechanical shaft seals can be used in these macerators in cases where leakage of the medium is unacceptable.

The profile of the cutting plates can be individually tailored.

The speed and direction of rotation of the shafts can be individually adjusted.

I have a question


Specifications	Capacity on water	Suction	Rotation speed	Power	Inlet	Outlet
Model	m3/h	MPa	rpm	kWt	mm х mm	mm х mm
SQS 100-7.5	100	0.6	20-70	7.5	575 х 795	575 х 795
SQS 150-11	150	0.6	20-70	11	575 х 795	575 х 795
SQS 300-15	300	0.6	20-70	15	575 х 795	575 х 795

SOLTEC® SQS series macerators are characterized by stable operation, reliability and long service life.

This type of macerator allows for fully automated operation: adjusting the speed of the shafts individually, controlling overloading and blocking, automatically reversing the direction of travel and removing blockages.


SQ Series	A0	B0	A	B	d0	d1	W	L	H	h
Model	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
SQS 100-7.5	370	685	1750	1320	170	685	1200	1750	400	500
SQS 150-11	370	685	1750	1320	170	685	1350	1750	400	500
SQS 300-15	370	685	1750	1320	170	685	1450	1750	400	500
