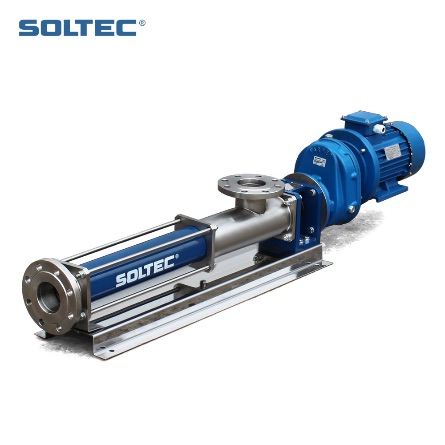

Horizontal Series of Progressive Cavity Single Screw Pumps SOLTEC ®

The design of a progressive cavity pump is engineered to provide efficient fluid transfer, handle various viscosities, and accommodate challenging fluids with suspended solids or abrasive materials.

CAPACITY 0.5 - 1500 GMP / 0.1 - 350 m3/h

Vestibulum vulputate lobortis tortor non tempus. Proinin ex blandit velit imperdiet tincidunt sit amet at quam. Nam ac ultrices urna,sitamet fermentum magna. Nulla eu mattis augue.

DIFFERENTIAL PRESSURE UP TO 348 psi / 2,4 MPa

Araesent blandit hendrerit justo sed egestas. Prointincidunt purus in tortor cursus fermentum. Proin laoreet erat vitae duiblandit,vitae faucibus lacus auctor. Proin ornare sit amet arcu at aliquam.

VISCOSITY UP TO 1'000'000 CPS

Araesent blandit hendrerit justo sed egestas. Prointincidunt purus in tortor cursus fermentum. Proin laoreet erat vitae duiblandit,vitae faucibus lacus auctor. Proin ornare sit amet arcu at aliquam.

MAKE A REQUEST

Design of Horizontal Progressive Cavity Single Screw Pumps SOLTEC ®

The design of a progressive cavity pump is engineered to provide efficient fluid transfer, handle various viscosities, and accommodate challenging fluids with suspended solids or abrasive materials.

1. Discharge Flange
2. Thru-Bolt
3. Stator
4. Pump Housing
5. Suction Flange
6. Rotor
7. Holding Band

8. Boot Seal
9. Guide Bush
10. Coupling Rod Pin
11. Coupling Rod Bush
12. Coupling Rod
13. Retaining Sleeve
14. Plug-in Shaft
15. Shaft Pin
16. Shaft Sealing

17. Sealing Plate
18. Retaining Ring
19. Lantern
20. Gear Box
21. Drive
22. Support
23. Base Plate

Operation of Horizontal Progressive Cavity Single Screw Pumps SOLTEC ®

SOLTEC ® Progressive Cavity Pumps are the type of positive displacement pumps that employs an assembly of a single-helical steel rotor and a double-helical resilient stator. Eccentric rotation of the rotor inside the stator forms fixed-size sealed cavities that move along the assembly creating pressure. The diameter and the eccentricity of the rotor are responsible for the capacity of the pump when the pitch of the rotor is responsible for potential pressure.

Data of Horizontal Progressive Cavity Single Screw Pumps SOLTEC ®

Discover the principle of operation of a Progressive Cavity Pump


MODEL - L01	PRESSURE	FLOW RATE	ROTOR SPEED	DRAWINGS	CURVES
BN 015 L01	58 psi / 0,4 MPa	1,3 - 4 GPM / 0,3 - 0,9 m3/h	800 - 1500 rpm		download
BN 021 L01	58 psi / 0,4 MPa	4 - 11 GPM / 1 - 2,5 m3/h	400 - 1000 rpm		download
BN 031 L01	87 psi / 0,6 MPa	8 - 31 GPM / 2 - 7 m3/h	300 - 1000 rpm		download
BN 038 L01	87 psi / 0,6 MPa	22 - 71 GPM / 5 - 16 m3/h	300 - 800 rpm		download
BN 045 L01	87 psi / 0,6 MPa	44 - 88 GPM / 10 - 20 m3/h	300 - 600 rpm		download
BN 053 L01	87 psi / 0,6 MPa	44 - 150 GPM / 10 - 35 m3/h	200 - 600 rpm		download
BN 063 L01	87 psi / 0,6 MPa	70 - 220 GPM / 15 - 50 m3/h	200 - 500 rpm		download
BN 076 L01	87 psi / 0,6 MPa	80 - 350 GPM / 20 - 80 m3/h	150 - 450 rpm		download
BN 090 L01	87 psi / 0,6 MPa	130 - 480 GPM / 30 - 110 m3/h	150 - 400 rpm		download
BN 105 L01	87 psi / 0,6 MPa	260 - 700 GPM / 60 - 160 m3/h	150 - 350 rpm		download
BN 125 L01	87 psi / 0,6 MPa	310 - 1100 GPM / 70 - 250 m3/h	100 - 300 rpm		download
BN 148 L01	87 psi / 0,6 MPa	440 - 1500 GPM / 100 - 350 m3/h	100 - 250 rpm		download


MODEL - S01	PRESSURE	FLOW RATE	ROTOR SPEED	DRAWINGS	CURVES
BN 015 S01	87 psi / 0,6 MPa	1,1 - 2,6 GPM / 0,25 - 0,6 m3/h	800 - 1500 rpm
BN 021 S01	87 psi / 0,6 MPa	1,1 - 5 GPM / 0,25 - 1,2 m3/h	300 - 1000 rpm		download
BN 031 S01	87 psi / 0,6 MPa	4 - 17 GPM / 1 - 4 m3/h	300 - 1000 rpm		download
BN 038 S01	87 psi / 0,6 MPa	13 - 35 GPM / 3 - 8 m3/h	400 - 800 rpm		download
BN 045 S01	87 psi / 0,6 MPa	17 - 44 GPM / 4 - 10 m3/h	300 - 600 rpm		download
BN 053 S01	87 psi / 0,6 MPa	13 - 74 GPM / 3 - 17 m3/h	200 - 600 rpm		download
BN 063 S01	87 psi / 0,6 MPa	22 - 110 GPM / 5 - 25 m3/h	200 - 500 rpm		download
BN 076 S01	87 psi / 0,6 MPa	22 - 160 GPM / 5 - 35 m3/h	150 - 450 rpm		download
BN 090 S01	87 psi / 0,6 MPa	70 - 260 GPM / 15 - 60 m3/h	150 - 400 rpm		download
BN 105 S01	87 psi / 0,6 MPa	90 - 350 GPM / 20 - 80 m3/h	150 - 350 rpm		download
BN 125 S01	87 psi / 0,6 MPa	90 - 520 GPM / 20 - 120 m3/h	100 - 300 rpm		download
BN 148 S01	87 psi / 0,6 MPa	220 - 700 GPM / 50 - 160 m3/h	100 - 250 rpm		download


MODEL - S02	PRESSURE	FLOW RATE	ROTOR SPEED	DRAWINGS	CURVES
BN 015 S02	174 psi / 1,2 MPa	1,1 - 2,6 GPM / 0,25 - 0,6 m3/h	800 - 1500 rpm		download
BN 021 S02	174 psi / 1,2 MPa	1,1 - 5 GPM / 0,25 - 1,2 m3/h	300 - 1000 rpm		download
BN 031 S02	174 psi / 1,2 MPa	4 - 17 GPM / 1 - 4 m3/h	300 - 1000 rpm		download
BN 038 S02	174 psi / 1,2 MPa	13 - 35 GPM / 3 - 8 m3/h	400 - 800 rpm		download
BN 045 S02	174 psi / 1,2 MPa	17 - 44 GPM / 4 - 10 m3/h	300 - 600 rpm		download
BN 053 S02	174 psi / 1,2 MPa	13 - 74 GPM / 3 - 17 m3/h	200 - 600 rpm		download
BN 063 S02	174 psi / 1,2 MPa	22 - 110 GPM / 5 - 25 m3/h	200 - 500 rpm		download
BN 076 S02	174 psi / 1,2 MPa	22 - 160 GPM / 5 - 35 m3/h	150 - 450 rpm		download
BN 090 S02	174 psi / 1,2 MPa	70 - 260 GPM / 15 - 60 m3/h	150 - 400 rpm		download
BN 105 S02	174 psi / 1,2 MPa	90 - 350 GPM / 20 - 80 m3/h	150 - 350 rpm		download
BN 125 S02	174 psi / 1,2 MPa	90 - 520 GPM / 20 - 120 m3/h	100 - 300 rpm		download
BN 148 S02	174 psi / 1,2 MPa	220 - 700 GPM / 50 - 160 m3/h	100 - 250 rpm		download


MODEL - S04	PRESSURE	FLOW RATE	ROTOR SPEED	DRAWINGS	CURVES
BN 015 S04	348 psi / 2,4 MPa	1,5 - 2,6 GPM / 0,35 - 0,6 m3/h	450 - 1000 rpm		download
BN 021 S04	348 psi / 2,4 MPa	2 - 7 GPM / 0,5 - 1,5 m3/h	450 - 1000 rpm		download
BN 031 S04	348 psi / 2,4 MPa	3 - 17 GPM / 0,7 - 4 m3/h	300 - 1000 rpm		download
BN 038 S04	348 psi / 2,4 MPa	11 - 35 GPM / 2,5 - 8 m3/h	300 - 800 rpm		download
BN 045 S04	348 psi / 2,4 MPa	15 - 44 GMP / 3,5 - 10 m3/h	300 - 600 rpm		download
BN 053 S04	348 psi / 2,4 MPa	11 - 74 GPM / 2,5 - 17 m3/h	200 - 600 rpm		download
BN 063 S04	348 psi / 2,4 MPa	22 - 66 GPM / 5 - 25 m3/h	200 - 500 rpm		download
BN 076 S04	348 psi / 2,4 MPa	44 - 176 GPM / 10 - 40 m3/h	150 - 450 rpm		download
BN 090 S04	348 psi / 2,4 MPa	70 - 260 GPM / 15 - 60 m3/h	150 - 400 rpm		download
BN 105 S04	348 psi / 2,4 MPa				download
BN 125 S04	348 psi / 2,4 MPa				download
BN 148 S04	348 psi / 2,4 MPa

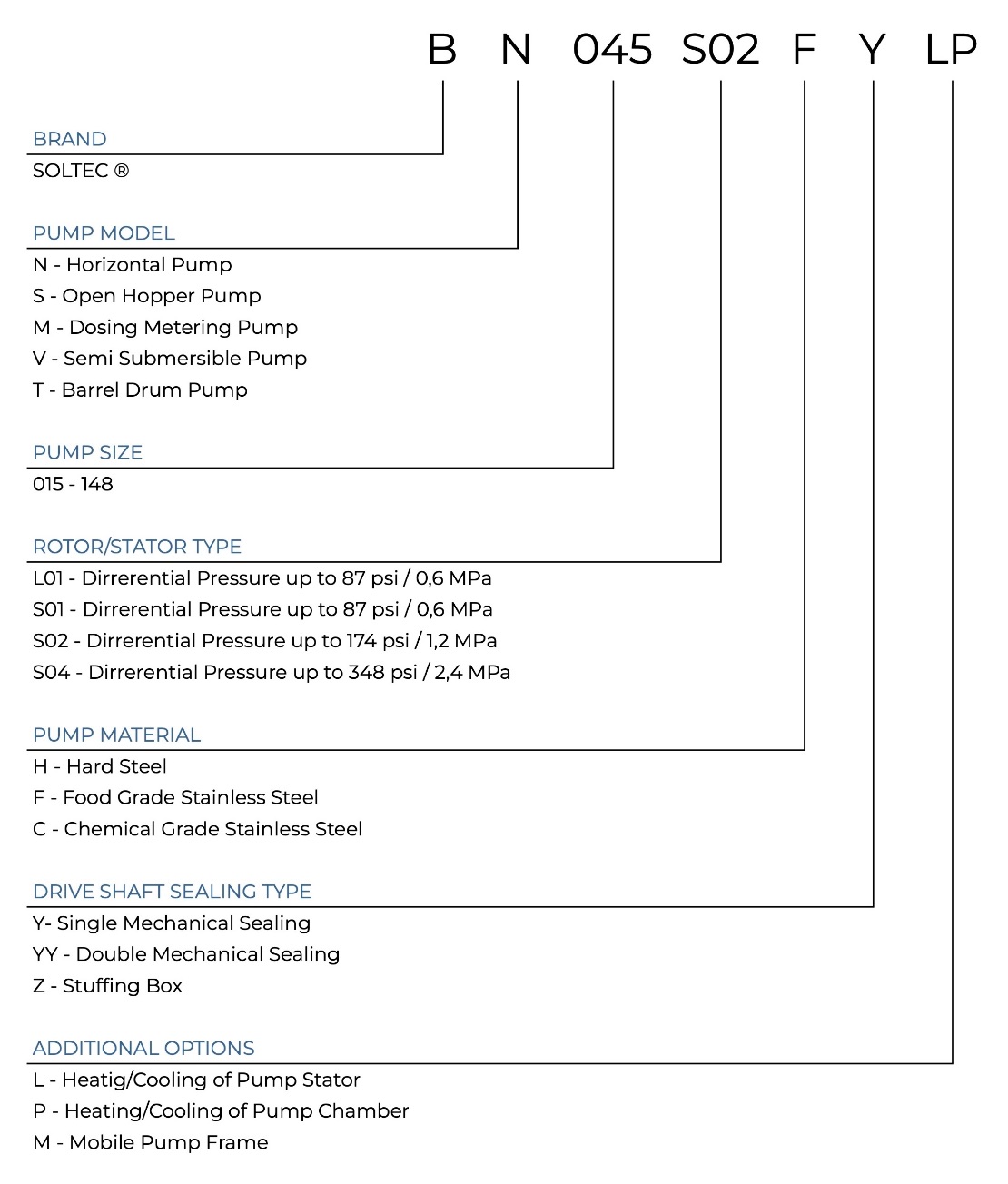

Nameplate Decryption of the Progressive Cavity Single Screw Pumps SOLTEC ®

The design of a progressive cavity pump is engineered to provide efficient fluid transfer, handle various viscosities, and accommodate challenging fluids with suspended solids or abrasive materials.

Latest Projects of Horizontal Progressive Cavity Single Screw Pumps SOLTEC ®

We accomplish more then 1000 custom tailored projects every year.

Progressive Cavity Pumps SOLTEC ® BH.1000.W2

Brand - SOLTEC
Pump Type - Horizontal
Material – Hard Steel
Stator Material - NBR
Differential Pressure - 175 psi / 1.2 MPa
Capacity - 265 GPM / 60 m3/h
Rotor Speed - 281 rpm
Drive Shaft Sealing - Single Mechanical
Drive - Gear-Motor 45 kW, explosion-proof (1EXD II BT4)
